Azure Table Column Mappings¶

For displaying table items columns can be mapped to a column from the table in Azure.

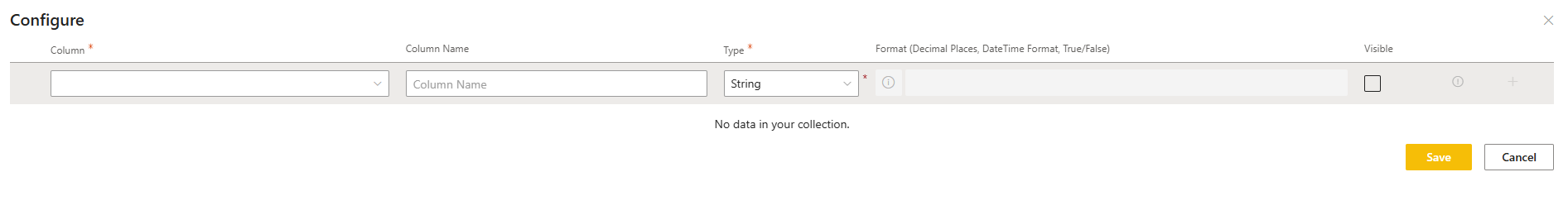

Configuration¶

Column¶

The column containing the data from the selected Azure table.

Required.

Column Name¶

The column name used to display in the details list.

Type¶

The data type for the column. This should match the selected type in the Azure table.

Required.

Options:

• String
• Boolean
• Date Time
• Double
• Int32
• Int64
• Guid
• Binary

Format¶

Depending on the selected type the data that is displayed can be formatted in different ways.

String, Int32, Int64, Guid, Binary

None.

Boolean:

• True/False
• Yes/No
• 1/0
• On/Off
• Enabled/Disabled

Date Time

A Luxon date time format, see https://moment.github.io/luxon/#/formatting?id=table-of-tokens for format tokens.

Double

The number of decimal places displayed for the value. Min 0, max 15.

Visible¶

When checked the column will be visible on the details list.
